Universal Garage Door Keypad for LiftMaster, Chamberlain, Craftsman, Genie & 12 More Brands
BFCM: Up to 10% OFF(11.20-30)
- Buy 1 Item → Get 5% OFF
- Buy 2 Items → Get 8% OFF
- Buy 3+ Items → Get 10% OFF
- Notice: All products, any combination, auto applied at checkout.
Pickup currently not available
Key features
- Universal compatibility — Works with LiftMaster, Chamberlain, Craftsman, Genie, Linear, Wayne Dalton, Overhead Door and 9 more brands. Supports openers with a purple, yellow, red, orange or green learn button, a black learn button, or 7–12 DIP switches.
- Built for outdoor use — Backlit keys for quick PIN entry in the dark, and a flip-top cover that keeps rain off the pad. The keypad mounts easily to your door frame with the included screws.
- Controls up to 4 openers — Set a separate 4-digit PIN for each garage door opener the keypad controls. Program the keypad before mounting it on the wall or door frame.
- Easy to program — Set up in minutes by following the instructions included in the box. Change your PIN at any time, or create a temporary PIN for neighbours and service workers and remove it when they are done.
- Multi-frequency and secure — Works on 300, 310, 315, 318, 372.5 and 390 MHz, and supports both Security+ and Security+ 2.0 code. It also works with older openers that use DIP switches, so a single keypad can replace several remotes.

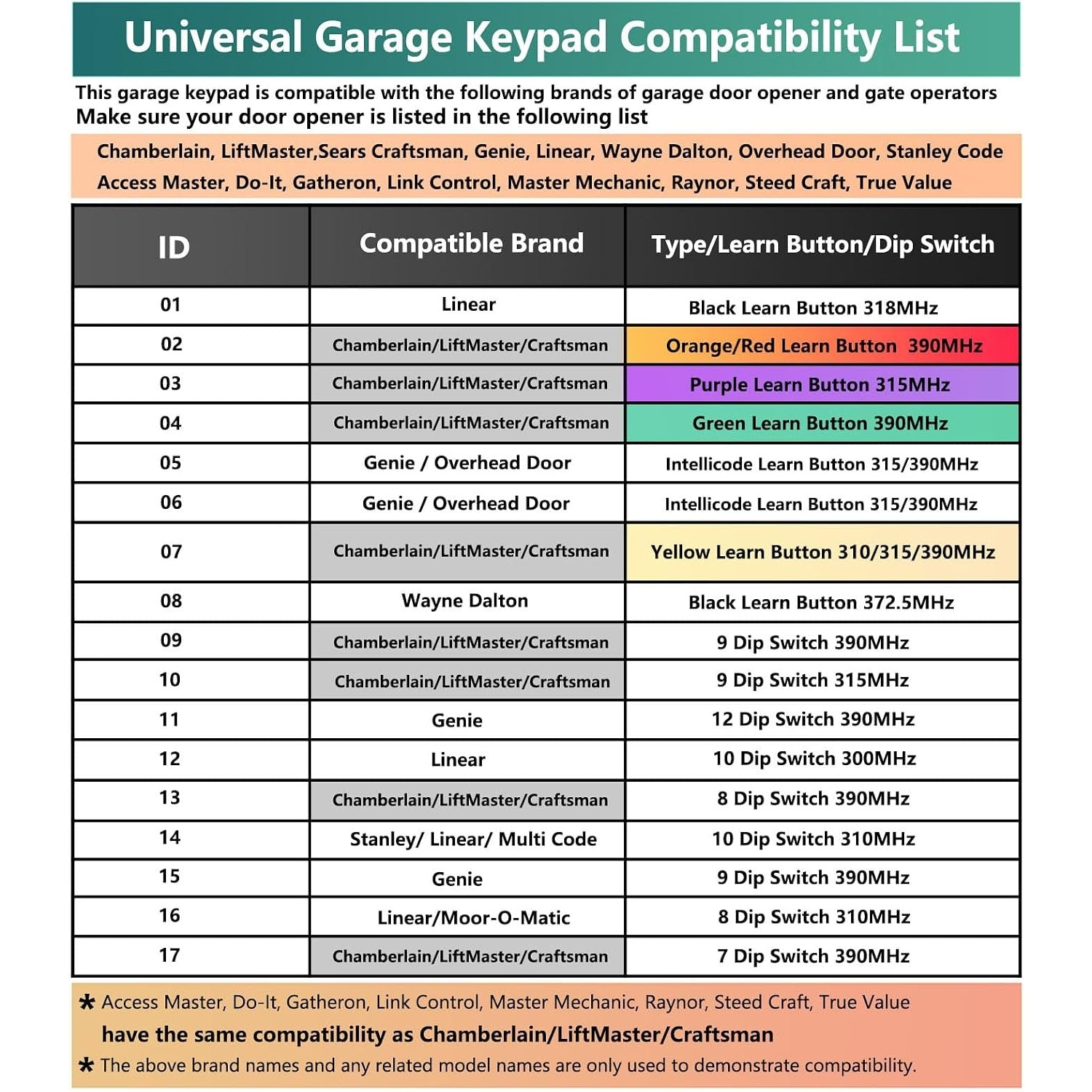

Compatibility by learn button and DIP switch
| ID | Compatible brand | Type / learn button / DIP switch |
|---|---|---|
| 01 | Linear | ● Black learn button, 318 MHz |
| 02 | Chamberlain / LiftMaster / Craftsman | ● Orange or red learn button, 390 MHz |
| 03 | Chamberlain / LiftMaster / Craftsman | ● Purple learn button, 315 MHz |
| 04 | Chamberlain / LiftMaster / Craftsman | ● Green learn button, 390 MHz |
| 05 | Genie / Overhead Door | ● Intellicode learn button, 315 MHz |
| 06 | Genie / Overhead Door | ● Intellicode learn button, 390 MHz |
| 07 | Chamberlain / LiftMaster / Craftsman | ● Yellow learn button, 310/315/390 MHz |
| 08 | Wayne Dalton | ● Black learn button, 372.5 MHz |
| 09 | Chamberlain / LiftMaster / Craftsman | ● 9 DIP switches, 390 MHz |
| 10 | Chamberlain / LiftMaster / Craftsman | ● 9 DIP switches, 315 MHz |
| 11 | Genie | ● 12 DIP switches, 390 MHz |
| 12 | Linear | ● 10 DIP switches, 300 MHz |
| 13 | Chamberlain / LiftMaster / Craftsman | ● 8 DIP switches, 390 MHz |
| 14 | Stanley / Linear / Multi Code | ● 10 DIP switches, 310 MHz |
| 15 | Genie | ● 9 DIP switches, 390 MHz |
| 16 | Linear / Moore-O-Matic | ● 8 DIP switches, 310 MHz |
| 17 | Chamberlain / LiftMaster / Craftsman | ● 7 DIP switches, 390 MHz |
Access Master, Do-It, Gatheron, Link Control, Master Mechanic, Raynor, Steel Craft and True Value have the same compatibility as Chamberlain, LiftMaster and Craftsman. Brand and model names are used only to demonstrate compatibility.
How to find your learn button
Open the light cover on your garage door opener motor head and look for a coloured square button near the antenna wire.
- Yellow (2011 and later) — Security+ 2.0, 310/315/390 MHz
- Purple (2005–2014) — Security+ 315 MHz
- Red or Orange (1997–2005) — Security+ 390 MHz
- Green (1993–1997) — Billion Code 390 MHz
- Black — Linear 318 MHz, Wayne Dalton 372.5 MHz
- No coloured button, switches only — DIP switch system, 7 to 12 switches
If the button colour is not on this list, your opener may not be compatible. Contact us before ordering.
Partial list of compatible brand models
| Brand | Compatible models |
|---|---|
| LiftMaster | 51LM, 61LM, 62LM, 63LM, 81LM, 82LM, 83LM, 84LM, 91LM, 92LM, 94LM, 96LM, 355LM, 365LM, 370LM, 371LM, 372LM, 373LM, 373P, 374LM, 376LM, 377LM, 378LM, 398LM, 891LM, 893LM, 890MAX, 893MAX, 895MAX, 970LM, 971LM, 972LM, 973LM, 974LM, 976LM, 977LM///66LM, 377LM, 877LM, 877MAX, 878MAX etc. |
| LiftMaster | 1240,1245, 1246, 1250, 1255, 1260, 1270, 1280, 1260LK, 1245LK, 1000SD, 2000SD, 215WD, 220WD, 315WD, 320WD, ATS211, 985, 1000SDR, 1240R, 1245R, 1246R, 1255R, 1256R, 1265, 1265R, 1280R, 2220, 2000SDR, 2110, 2245, 2255, 2265, 2280, 2500, 2500B, 2500D, 2565, 2575, 2580, 2585, 2589, 2595, ATS211R, ATS211X, 1345, 1346, 1355, 1356, 3110, 3220, 3130, 3255, 3240, 3245, 3265, 3270, 3280, 3500, 3575, 3585, 3595, 3800, 3800P, 3800PLD, 3850, ATS2113X, ATS2113X-CX, HCT501130, LGO50113R, LGO20113XR |
| LiftMaster | 87504-267, 87802, 84602, 84501, 85503-267, 8550WLB, 8360WLB, 8160WB, WLED, 8557W, 8587W, 8355W, 8360W, 8365W-267, 8155W, 8160W, 8164W, 8165W, 8365-267, 8155, 8160, 8165, 8010, 8065, 8075, 8550, 8550W, 8557, 8587, 8355, 8360, 8365, 8500, 8500C, 8500W, 87504-267, 87802, 84602, 84501, 8365W-267, 8160WB, 8160W, 8165W, 8155W, 8164W |
| LiftMaster | 41A5021, 41A5021-B, 41A5021-C, 41A5021-D, 41A5021-E, 41A5021-F, 41A5021-G, 41A5021-H, 41A5021-I, 41A5021-1, 41A5021-1B, 41A5021-1C, 41A5021-1D, 41A5021-1E, 41A5021-1F, 41A5021-1G, 41A5021-1H, 41A5021-1I, 41A5389-1, 41A5389-1C, 41A5389-1D, 41A5389-1E, 41A5483, 41A5507, 41A5021-1H-315, 41A5021-1M-315, 41AB050-2, 41AB050-2M, 41AC050-1, 41AC050-1M, 41AC050-2, 41AC050-2M, 41AC075-2, 41AC075-2M,41DB001-1 |
| Chamberlain | 740CB, 750CB, 756CB, 850CB, 853CB, 856CB, 940CB, 940CD, 940D, 950CB, 950CD, 950D, 953CB, 953CD, 953D, 956CB, 956CD, 956D, 940EV, 950EV, 953EV, 956EV, KLIK1U, KLIK2U, KLIK5U, 940ESTD, 950ESTD, 953ESTD, CLT1, CLK1, MC100///41A3###,41A4###,41A4###, 41A5###, 41AB####, 41AC####, 41AS####, 41A7### etc. |
| Chamberlain | 1100, 2100, 4100, 4600, 5100, 7200, 8100, 8700, 710WHC, 711WHC, 8100M, CSO, PD100, PD200, PD600, 1200, 2200, 2265, 4200, 4620, 4640, 6200, 7220, 7320, 7420, 7902, 8200, 9200, 9902, 9950, 9960, CG40, PD210, PD212, PD420, PD460-2, PD610, PD612, PD612K, PD752, PD785S, WD822K,WD822KS, WD912K, WD922K, 1345, 1346, 1355, 1356, 3110, 3130, 3220, 3240, 3245, 3255, 3265, 3280, 3500, 3575, 3585, 3595, 3800, 3850, 248735, 995XDM, CG40D, CG42D, HD200D, HD600D, HD800D, HD900D, LW2000, LW3000, LW3500, PD210D |
| Chamberlain | PD212D, PD420D, PD422D, PD432D, PD462D, PD612KLD, PD752D, PD758D, WD822KD, WD832KD, WD952KD, WD952LD, WD962KD, ATS2113X, HCT501130, LGO50113R, LGO20113XR, 349544, 349544EV, HD220, HD220C, HD420EV, HD520EV, HD920EV, HD930EV, HD750WF, HD950WF, LW260C, LW2200, LW3000EV, LW5000EV, LW9000WF, PD220, PD222, PD612EV, PD752KEV, PD762EV, WD832KEV, WD850KEV, WD930EV, WD962KEV, WD962KPEV, WD962MLEV, 45ACT, 45DCT, 50DCTWF |
| Craftsman | 139.18750, 139.30498, 139.30499, 139.3050, 139.53680, 139.53681, 139.53684, 139.53753, 139.53754, 139.53758, 139.53776, 139.53778, 139.53859, 139.53879///139.184##, 139.185##, 139.188##, 139.531##, 139.532##, 139.533##, 139.534##, 139.535##, 139.536##, 139.537##, 139.538##, 139.539##,139.54985 etc. |
| Genie | ACSCTG Type 1/2/3, G1T, G2T, G3T-BX, GICT390-1, GICT390-3, GICTD-1, GICTD-3, GIFT390-1, GIFTD-1, GIT-1, GIT-2, GIT-3, GITR-3, GK-BX, GWKP///Screw Drive, Bluemax, Chain Drive, Chain Max, Chain Lift, Chain Glide, Genie PRO, Excelerator, Trac Drive, Lift a Door, Hercules etc. |
| Overhead Door | 37517R, ACSCTG Type 1/2/3, ACSCTO Type 3, O1T-BX, O3T-BX, OC2T-1, OCD390-1, OCDT-1, OCDTR-3BX///Odyssey 1000, Odyssey 1200, Destiny 1200, Destiny 1500, Standard Drive 650, Legacy 496CD, Legacy 696CD, Legacy 800, Legacy 850, Legacy CLD51, Phantom 777CD, Python OCG510, Python OCG550L, Python OCG710, Python OCG750L, 930-CD, 950-CD Signature, 990-CD Overdrive, GCG350L, GCG350ML, PCG700ML etc. |
| Linear | MCT-1, MCT-2, MCT-3, MCT-11, ACT-21A, ACT-22A, ACT-31B, LPWKP, MDT-1A, MDT-2A, MDT-4A, MDTK, MDR, MDR-2, MDR/U, MDRG, MGR, MGR-2, MGT, SMDRG///LDO33, LDO50, LSO50, LCO75, LDCO800, LDCO850, LDCO852, LDC0863B///Moore-O-Matic, DTC Delta 3///Multi-Code, 1089, 3060, 3070, 3089 etc. |
| Wayne Dalton (372.5MHz) | Classic Drive 3014/3018; Quantum 3214/3314/3316; ProDrive 3220C/3221C/3222C/3224C/3320B/3322B/3324B; 327310, 334642, 3BTM, 3973C, 300643, 334632, 302083 etc. |
| Dip Switch | 7-12 Code Dip Switch Remote. (For compatible Dip Switch brands, please see rows 9-17 of the compatibility list on the second page of the main image) |
The above list is a partial list of compatible models. For more compatibility, please refer to the compatibility list in the 2nd main picture or contact the seller. The above brand names and any related model names are only used to demonstrate compatibility.
Forgot the PIN, or Need to Change It?
The PIN is set on the keypad, and the opener separately remembers the keypad as a paired device. That is why a forgotten PIN never means a new keypad: you reset the keypad, learn it to the opener again and set a new PIN. If you still know the current PIN, change it without a full reset by re-entering programming mode. The key sequence for both operations is in the manual supplied with the unit.
Reset the keypad, then set a new PIN
Clearing the keypad does not remove it from the opener. If you are revoking access — a previous owner, a tenant, a lost keypad — erase the paired devices at the opener as well, following the opener’s own manual. On learn-button openers that is usually a long hold on the learn button; on DIP switch openers you change the switch pattern, which invalidates every remote and keypad set to the old code.
Frequently asked questions
Which brands and openers does this keypad work with?
It works with LiftMaster, Chamberlain, Craftsman, Genie, Linear, Wayne Dalton, Overhead Door, Stanley and 8 more brands — 16 in total. It supports openers with a purple, yellow, red, orange or green learn button, a black learn button, or 7 to 12 DIP switches. See the compatibility table above for the full list.
How do I know which learn button my opener has?
Open the light cover on the motor head and look for a coloured square button near the antenna wire. Match its colour to the table above. If there is no coloured button and you only see a row of small switches, your opener uses the DIP switch system.
Does it work with DIP switch openers?
Yes. It works with 7, 8, 9, 10 and 12 DIP switch systems on 300, 310, 315 and 390 MHz. Match your switch count and frequency to the table above.
How many openers can one keypad control?
Up to 4. You can set a separate 4-digit PIN for each opener.
Can I set a temporary PIN for guests or service workers?
Yes. Create a temporary PIN and remove it whenever you want, without changing your permanent PIN.
Is the keypad weatherproof?
The keypad has a flip-top cover that keeps rain off the buttons. It is designed for mounting outdoors on the door frame.

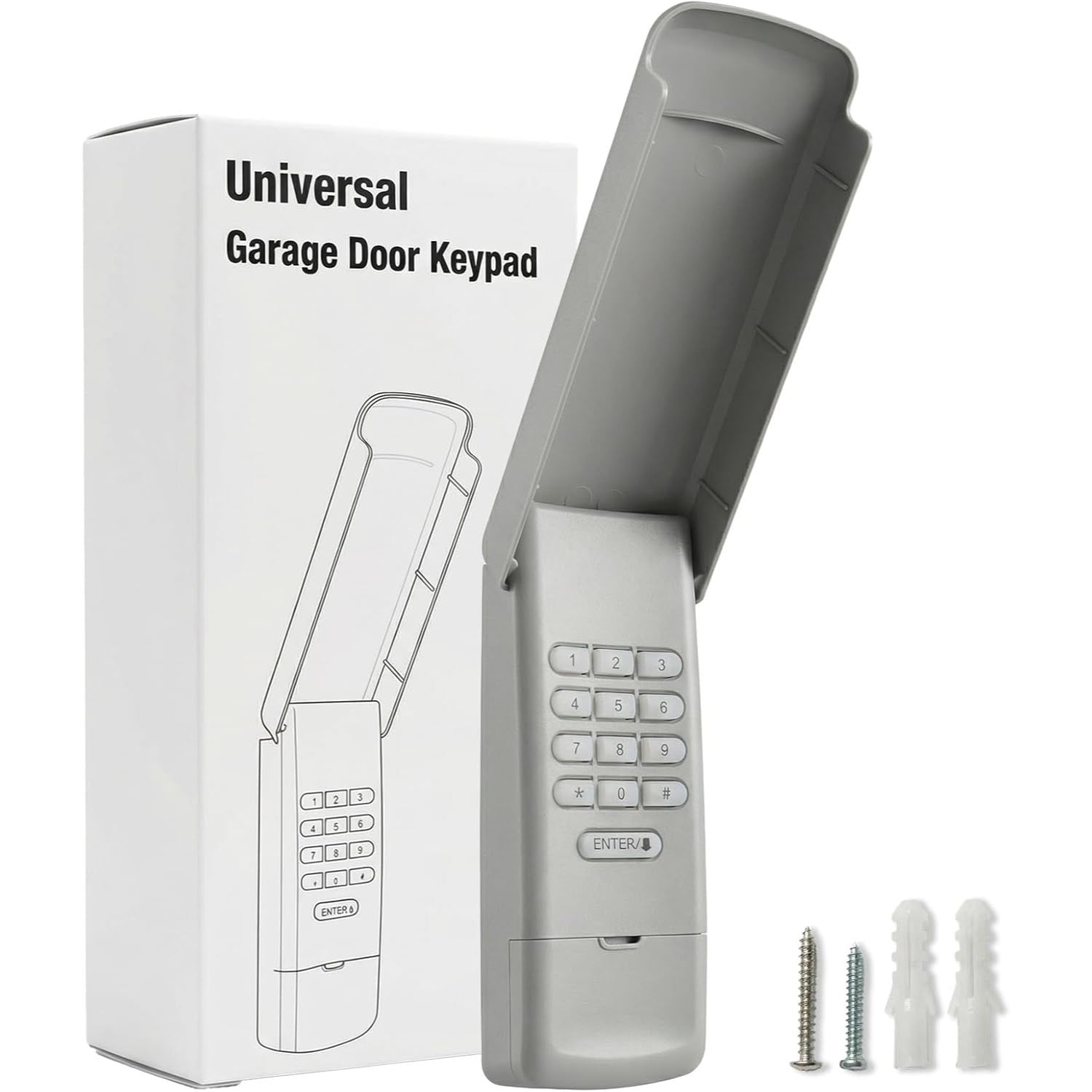

What is included in the box?
The keypad, mounting screws and step-by-step programming instructions.
How do I program it?
Follow the step-by-step instructions included in the box. Programming takes about two minutes and must be done before the keypad is mounted on the wall or door frame.
I forgot my PIN — do I need a new keypad?
No. Reset the keypad, learn it to the opener again and set a new one. The key sequence is in the manual.
